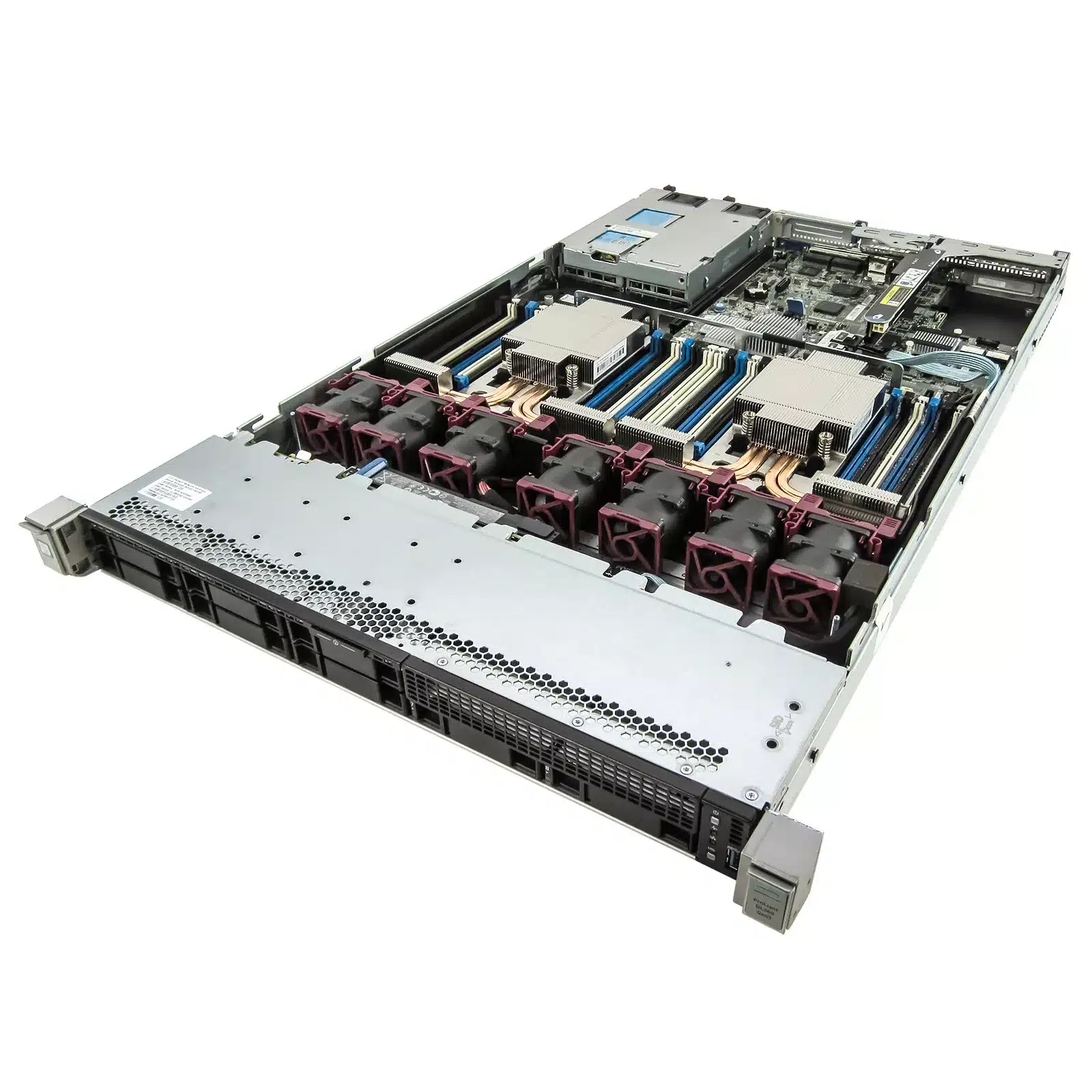

Avaya DL360G9 SRVR 1 CPU MID2 Refurb 700510965

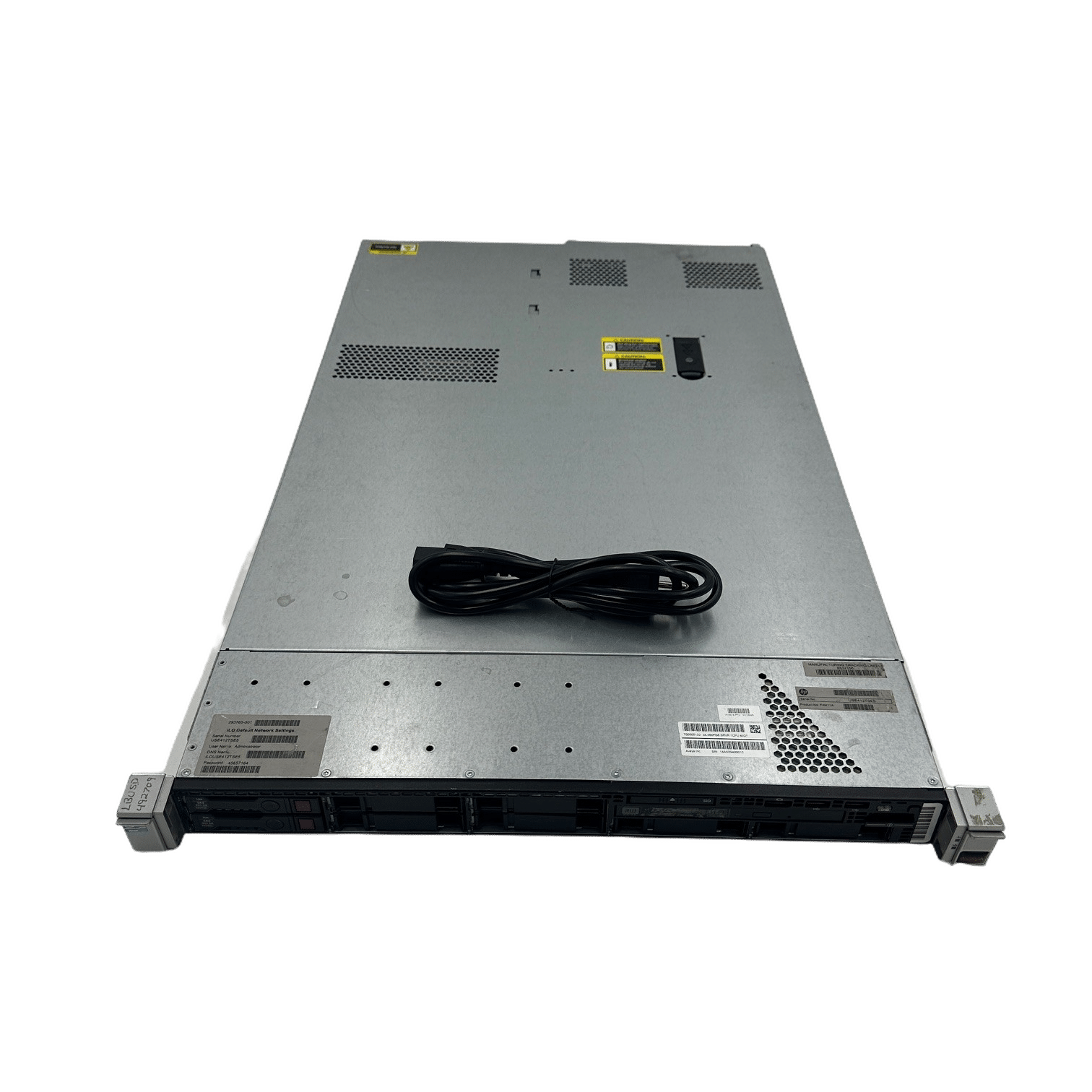

Avaya DL360G9 SRVR 1 CPU MID2 Refurb 700510965 - Image 2

Avaya DL360G9 SRVR 1 CPU MID2 Refurb 700510965

CONDITION: RE-MADE IN THE USA™ Refurbished

Part Number: 383438

Condition: RE-MADE IN THE USA™ Refurbished

remade-in-the-usa-telecom-refurbishment-initiative

Out of stock

FREE Ground Shipping on qualifying orders over $250. International and oversized/bulk items are excluded.
Orders typically ship same day

For Quantity Discounts or Expedited Shipping
Call: 800-895-9660 or
Email: sales@retrotel.com

Avaya 700510965 DL360G9 SRVR 1 CPU MID2



DL360 G9

1U Chassis, Dual Socket

DL380p G9 2U Chassis, Dual Socket

Processor

Intel E5-2620v3, Six Core 2.3 GHz (Haswell)

4 memory channels per CPU with up to 3 DIMMs per channel (most applications use 1 or 2 DIMMs per channel to optimize memory speed)

  • Intel E5–2640v3 Eight Core/2.6 GHz (Haswell)

  • Intel E5–2680v3 Twelve Core/2.5 GHz (Haswell)

Memory

4 GB DDR4 RDIMMs

Max Capacity for memory (4 GB RDIMM):

  • 48 GB, 12 x 4 GB (1 proc)

  • 96 GB, 24 x 4 GB (2 proc)

HW RAID

P440ar RAID controller with 2 GB Cache and battery backup. Optioned as RAID 1, 5, or 10.

Other RAID configurations available

Hot-Plug disk drive cage

8 Small Form Factor 2.5” hot-plug hard drive bays are available when an optical drive is installed.

N/A

Disk drive

300 GB SAS 2.5″ 10K RPM 6G DP Hard Drive. Two base configurations:

  • 279 GiB total: RAID 1, 2 x 300 GB drives

  • 559 GiB total: RAID 5, 3 x 300 GB drives

  • 838 GiB total: RAID 5, 4 x 300 GB drives

  • 559 GiB total: RAID 10, 4 x 300 GB drives

Note:

  • 1 GB = 109 Bytes

  • 1 GiB = 230 Bytes

  • Additional 300 GB 10K RPM SAS drive

  • High performance 300 GB 15K SAS drives

  • High capacity 600 GB 10K SAS drives

  • High performance 900 GB 10K SAS drives

  • High capacity 1.2 TB 10K SAS drives

Note:

For each application, the system displays the hard drive capacities that are specified for the application.

NICs

4 or 6 integrated ENET Gigabit NIC ports with TCP offload engine (included on motherboard)

Two additional dual NIC slots may be populated for certain applications.

PCIe slots

Three PCI-Express Gen 3 expansion slots: (1) full-height, 3/4-length slot and (1) low-profile slots

Slot 1 is full height / 3/4-length x16

Slot 1 is low profile / half length x8

Removable media

Slim line SATA DVD-RW optical drive (used in all Avaya configurations)

No additional options supported.

Power supply

500 W or 800 W hotplug AC power supply

  • 800 W DC power supply

  • Single and dual power supply configurations

Fans

5 Fan modules in 1 processor model

7 fan modules hot-swappable (fan redundancy standard)

Additional items

2 front USB (1–2.0, 1–3.0), 2 back USB (3.0), 1 internal USB port, and front video connector
